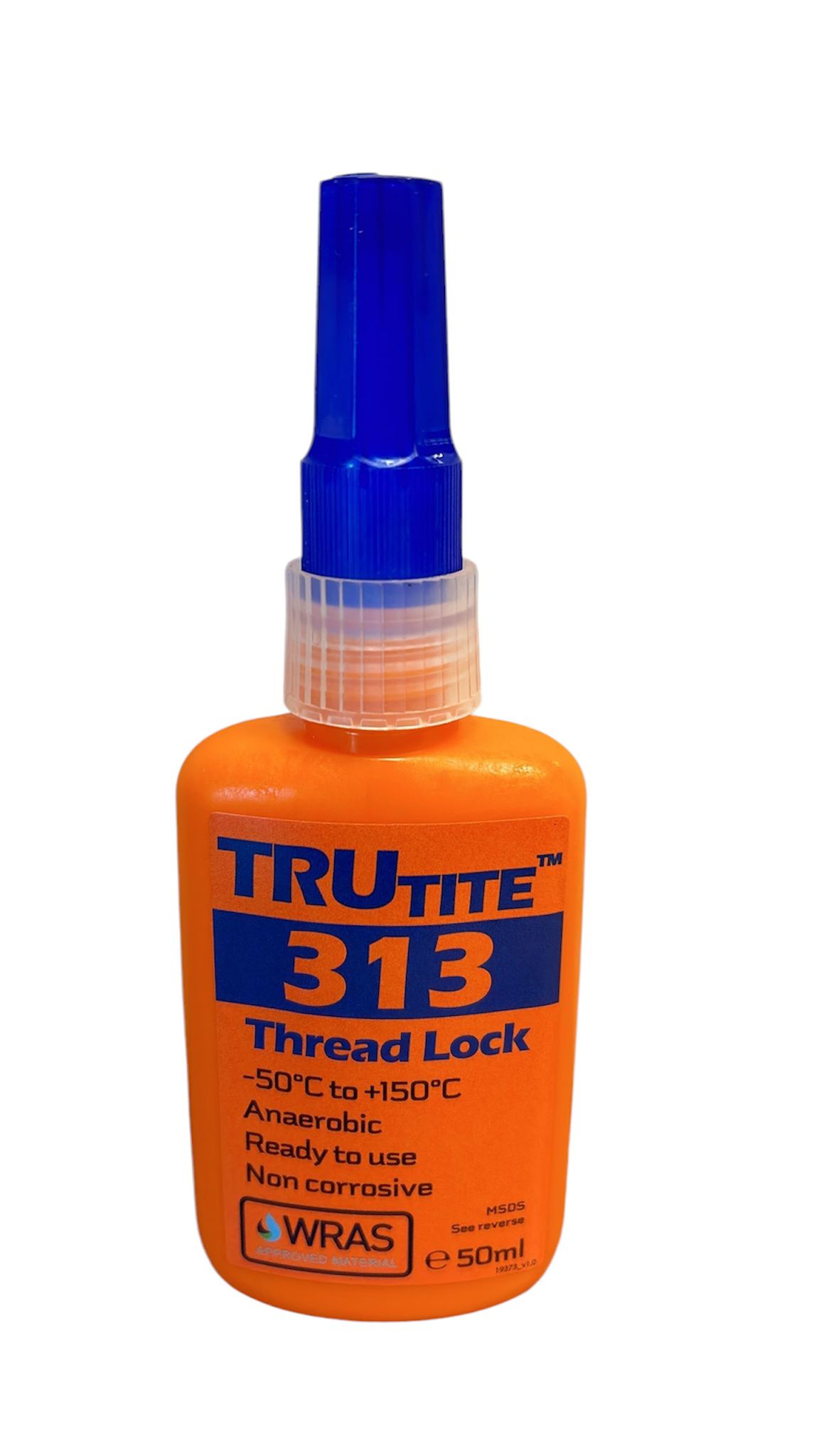

TruTite™ 313 Thread Lock
TruTite™ 313 Thread Lock is designed for the instant assembly of threaded fasteners which if required can be disassembled with standard hand tools for maintenance or replacement purposes.
The product is an anaerobic thread locks which cures when oxygen is no longer present. This occurs when the air between your two metal fittings disperses which then allows the blue liquid to cure in a matter of minutes (please see curing times). This process then forms a strong fitment which will prevent any loosening and leaks from vibrations caused to the fitment.
TruTite™ 313 Thread Lock is most often used on Brass and Steel but is also effective on Stainless Steel, Aluminium and BZP Steel products
Curing Times
Metal Type Duration
Brass up to 0.5mins
Steel up to 4mins
Stainless Steel up to 6mins
BZP Steel up to 30mins
Aluminium up to 35mins
Please note: curing time can be affected by thread pitch and ambient temperature at time of
application.
Results are based upon application in 22°C atmosphere
System can be used within 1-3 hours of TruTite™ 313 Thread Lock application
Full curing time is between 8-12 hours
TruTite 313 Thread Lock Approvals
DIN EN 751-1 — (Gas Approval)
BS 6920 — (Water Approval)
Directions for use
Before use read TruTite™ 313 Thread Lock MSDS
Ensure all metal parts are clean and dry
Apply in one full rotation to male and female metal parts, use sparingly
Excess product will not dry, remove with cloth
To disassemble, use hand tools, if difficult to do so heat up to 250°C and repeat whilst hot
Can not be used on plastic fittings
Storage

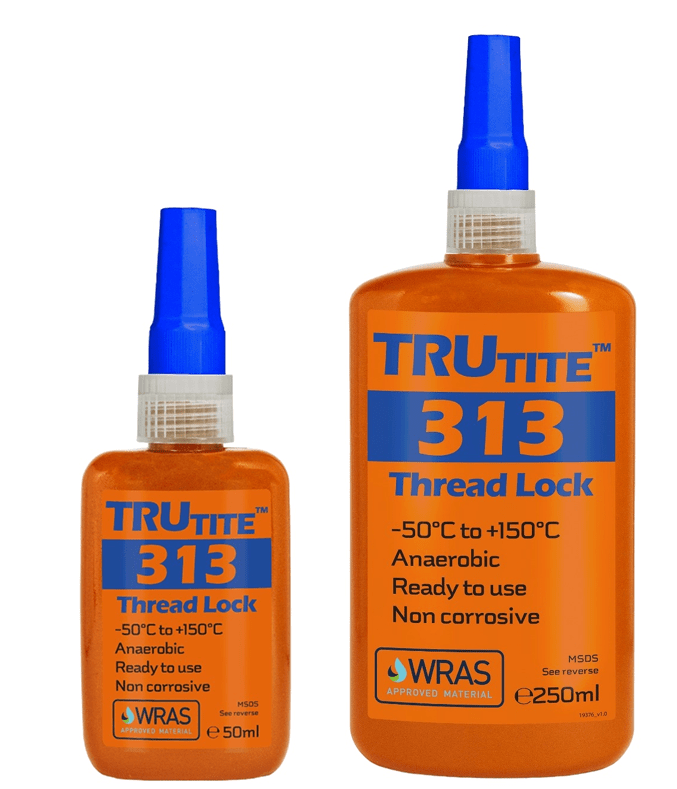

Always keep in the original 50ml/ 250ml container
Store in a cool dry place, optimum storage temperature 22°C, avoid any direct sunlight
If product is kept at temperatures of less than 5°C or above 30°C this can negatively affect the
performance of TruTite 313 Thread Lock
For expiry of product please see reverse of packaging, product life is 36 months from date of
manufacture
Health and Safety
TruTite 313 Thread Lock contains methacrylate esters, for additional information read MSDS
before use
Disclaimer
The information provided including the recommendations for use and application of the product are based on our knowledge and experience of the TruTite 313 Thread Lock product as at the date of this TDS. The product can be used for multiple situations as well as differing
application and working conditions in your atmosphere that are beyond our control.
Trutite Ltd are not liable for the aforementioned scenarios of our product, as well as the intended results on differing metals.
We strongly recommend that you carry out your own trials to confirm successful use of TruTite 313 Thread Lock. Any liability in respect of this data sheet or any other written or oral recommendation(s) regarding the concerned product is excluded.
